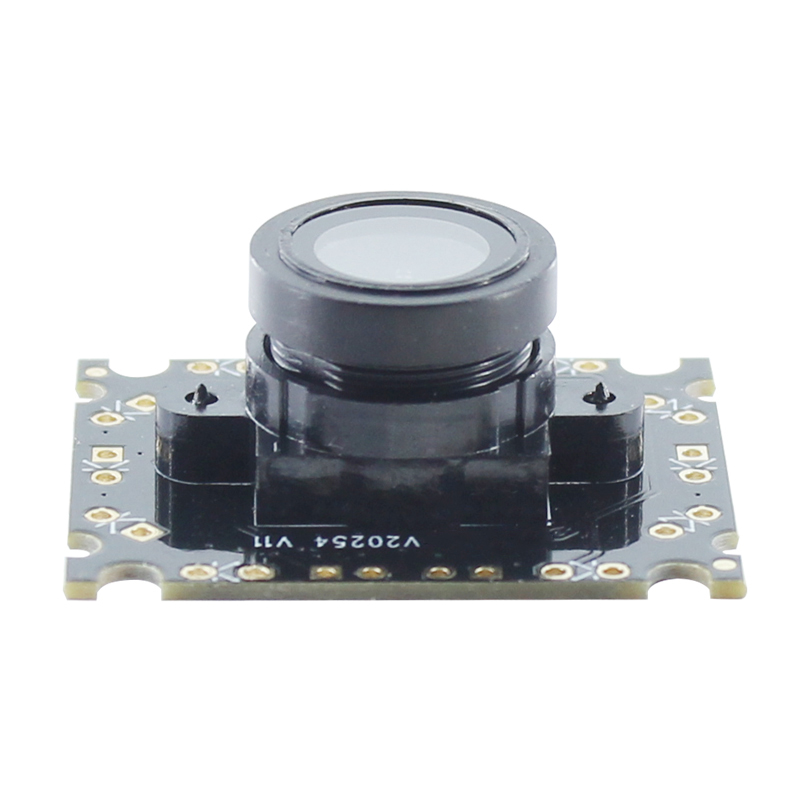

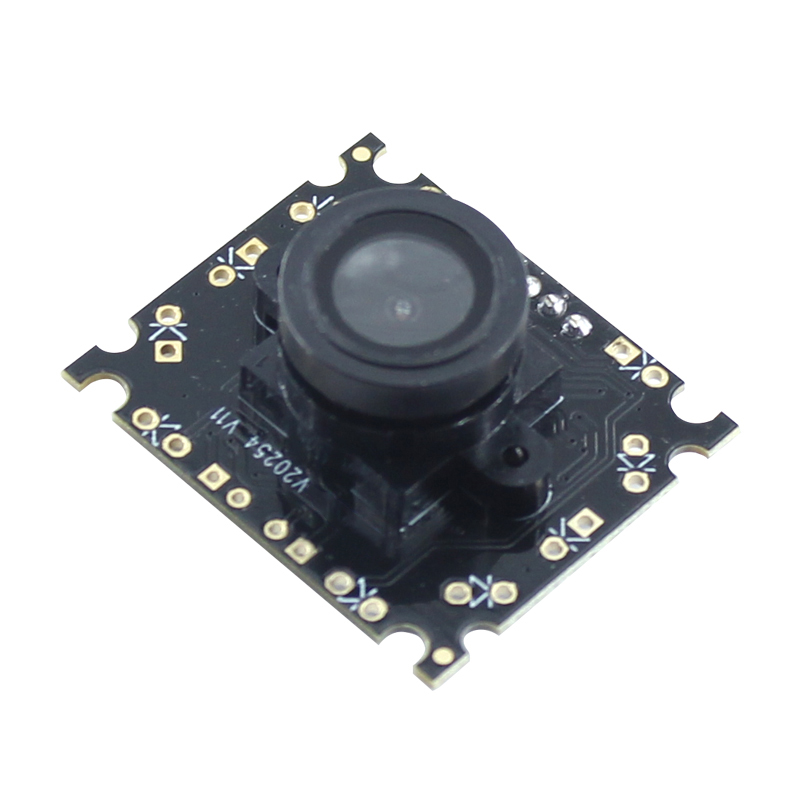

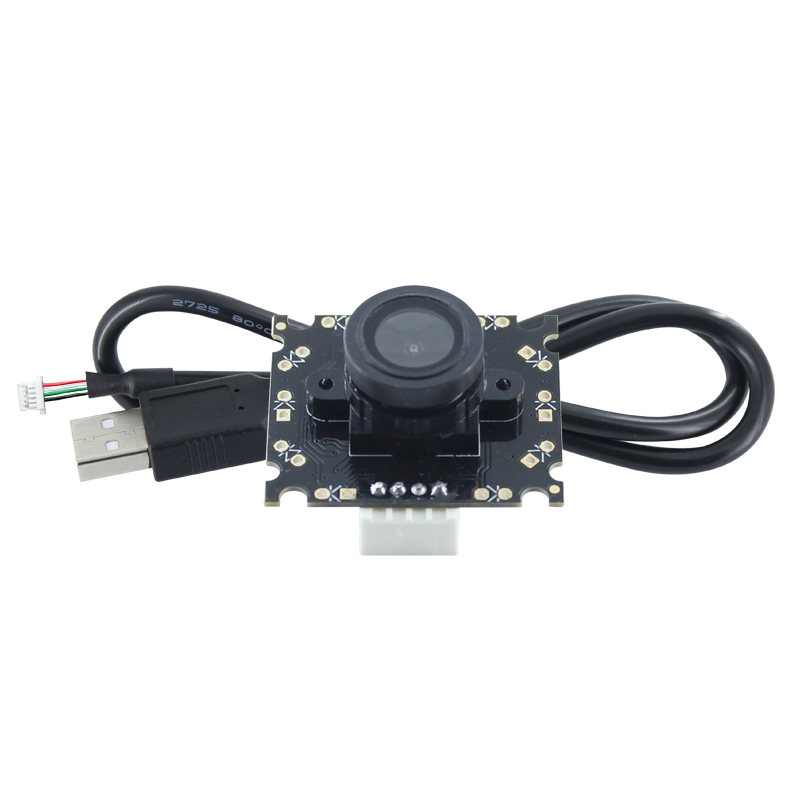

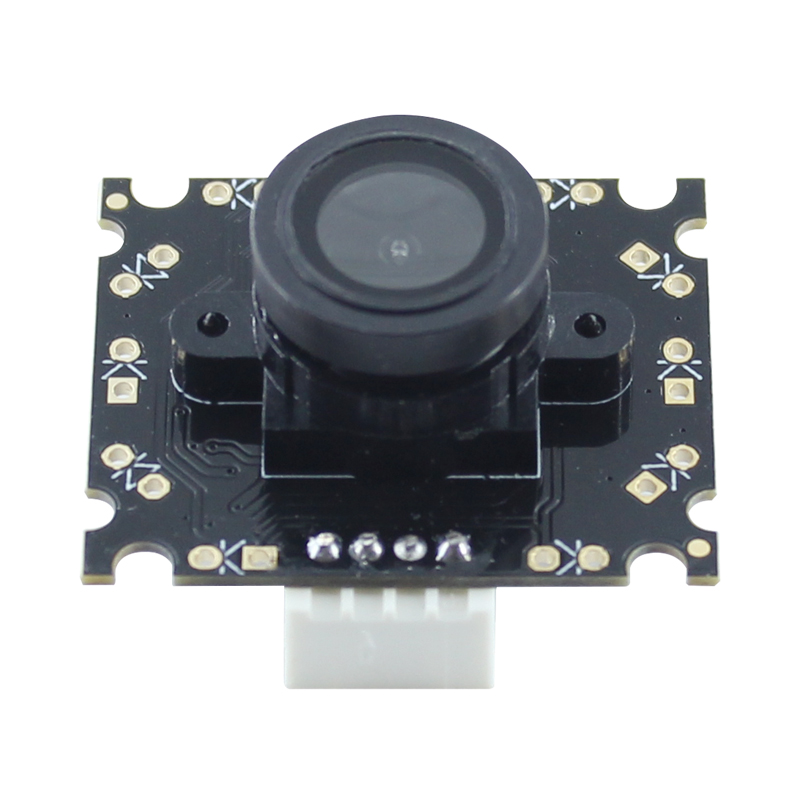

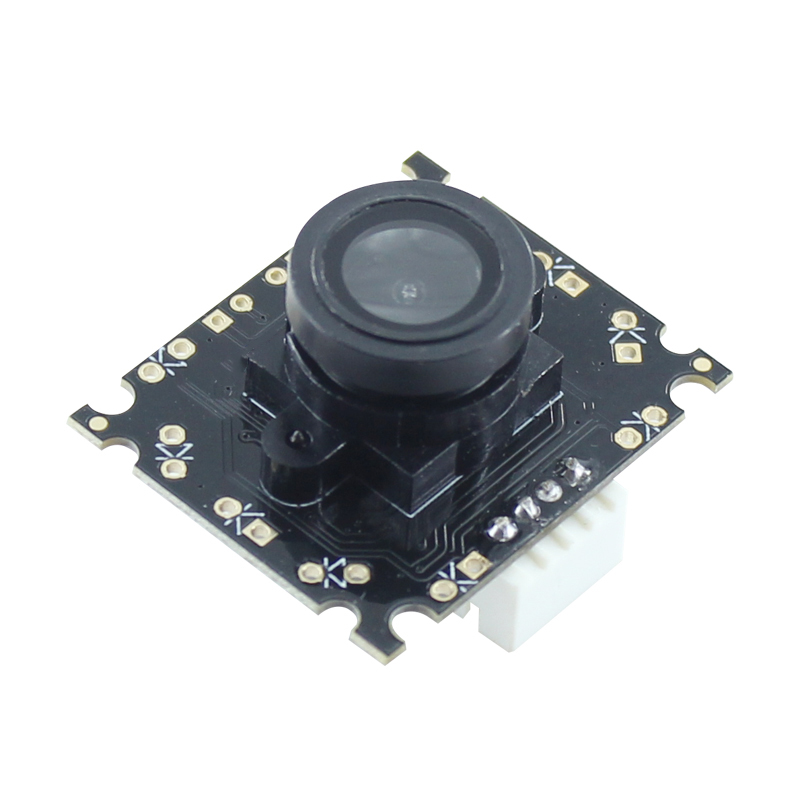

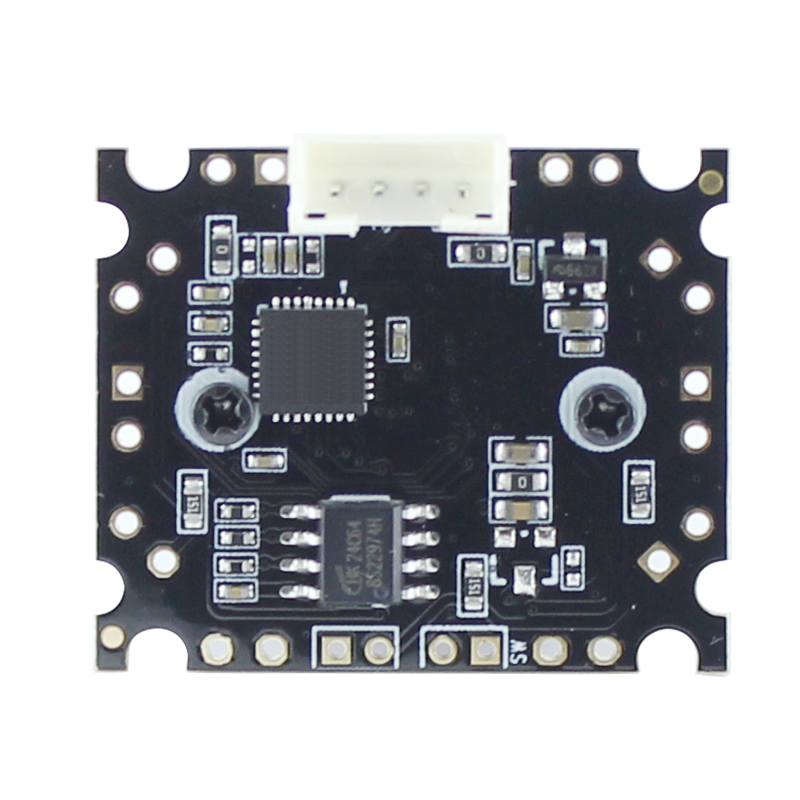

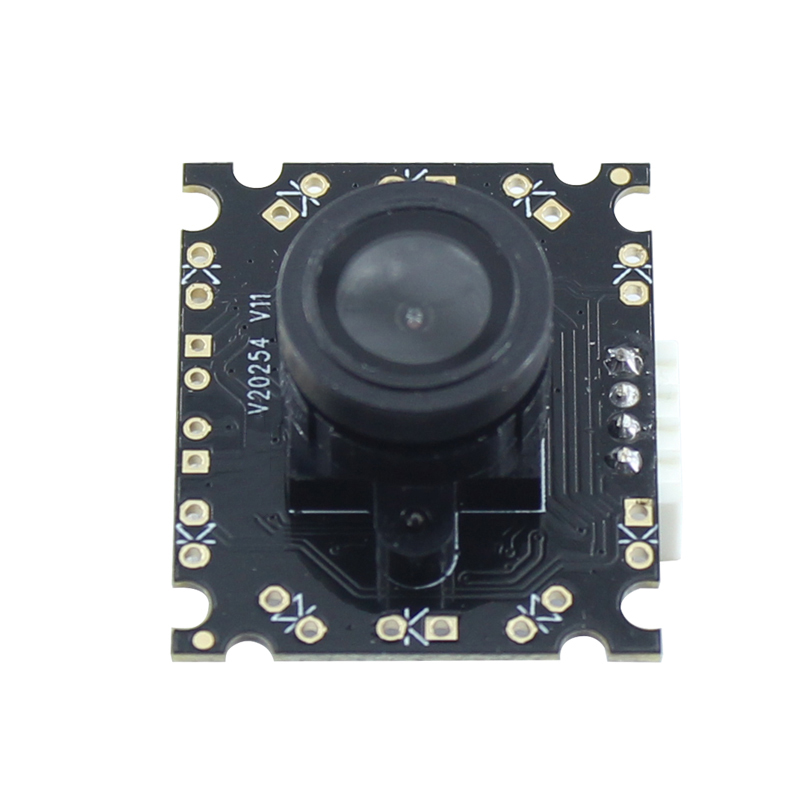

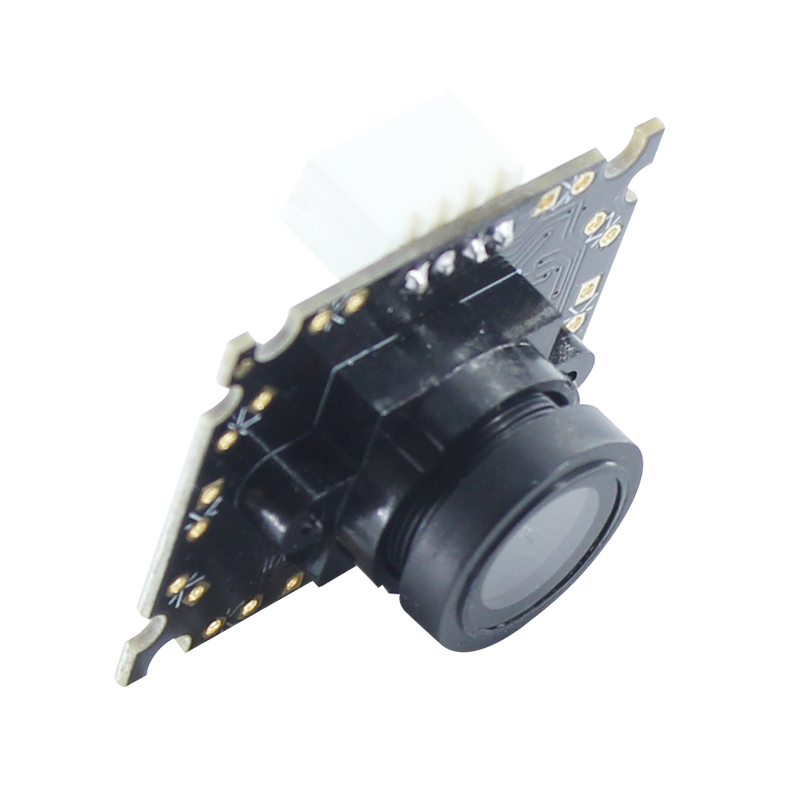

0.3MP face recognition camera module embedded built-in camera module

Product category:

USB Camera Board

SKU:

216735

Price:

$4.80

Description

Product Name	0.3MP Device Embedded Built-in Camera Module
Module No	BMV20254 V11-100
Module Size	30mm × 25mm × 12.00mm±0.3MM
Features	1. Conventional standard 30X25mm structure is versatile (PC camera available) 2. Remove the weldable wire from the seat 3. Welding plug-in lamp (infrared white light) can be added to control two welding joints, and the number of lamps is optional 4. Optional lens 5. Cost-effective 6. 130/160 degrees with slight vignetting on the four sides, without built-in microphone (defect)
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	250mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV7670 (1/6" )
Seneor Package	CSP,Bare Die
Maximum resolution	640*480
Sensitivity	1.3V /（lux-sec）
Pixel Size	3.6µm x 3.6µm
Maximum Image Transfer Rate	YUY2 160x120 30FPS YUY2 176x144 30FPS YUY2 320x240 30FPS YUY2 352x288 30FPS YUY2 640x480 30FPS
S/N Ratio	46 db
Max Dynamic Range	52 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2
Microphone	NO
Lens Construction	1G3P
F/No	2.5
EFL	1.3mm
FOV	130°
TV Distortion	<-2.3%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
