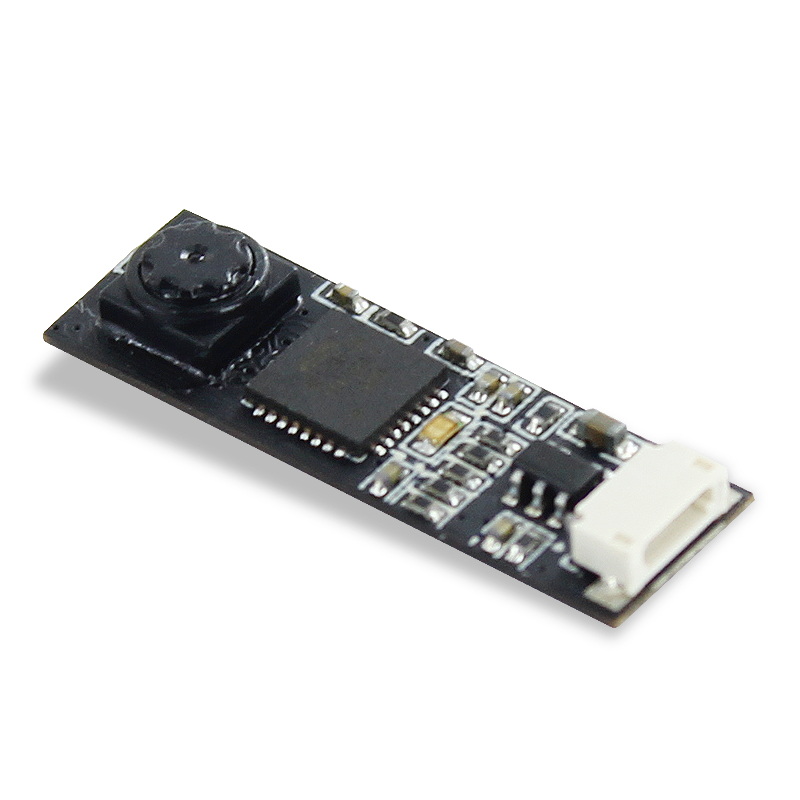

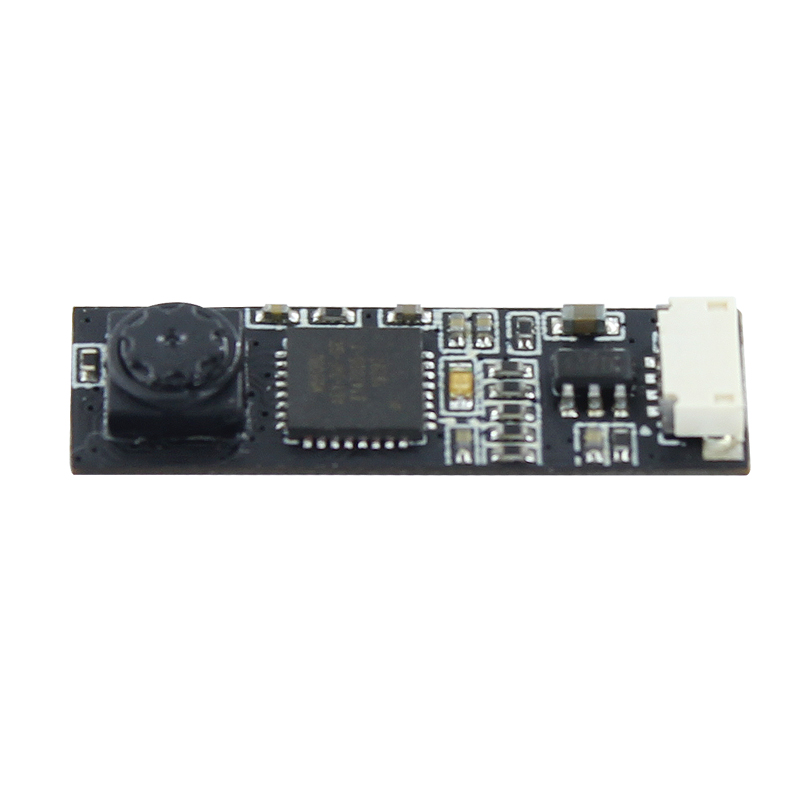

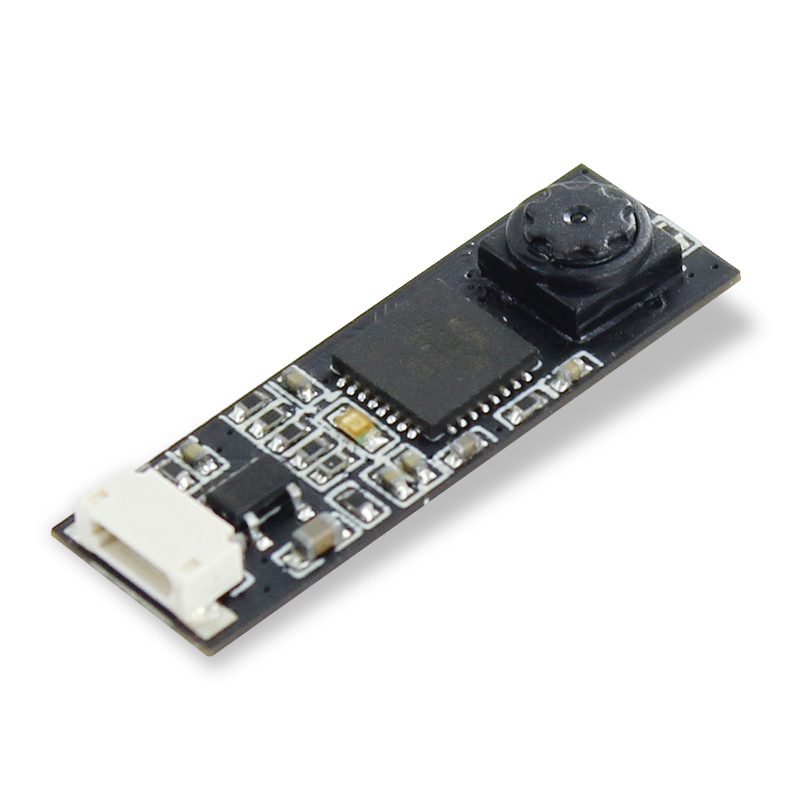

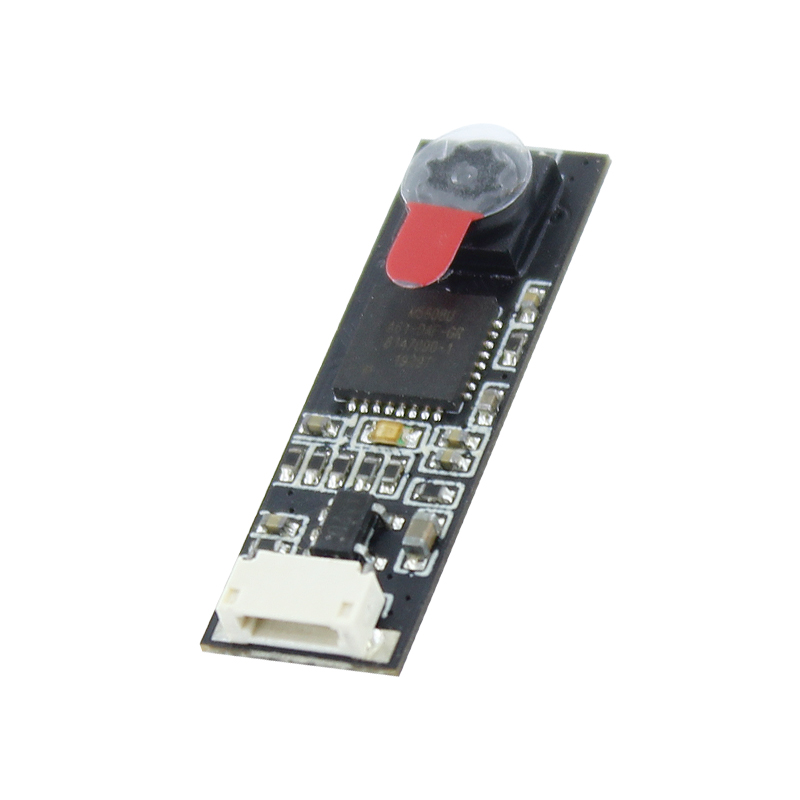

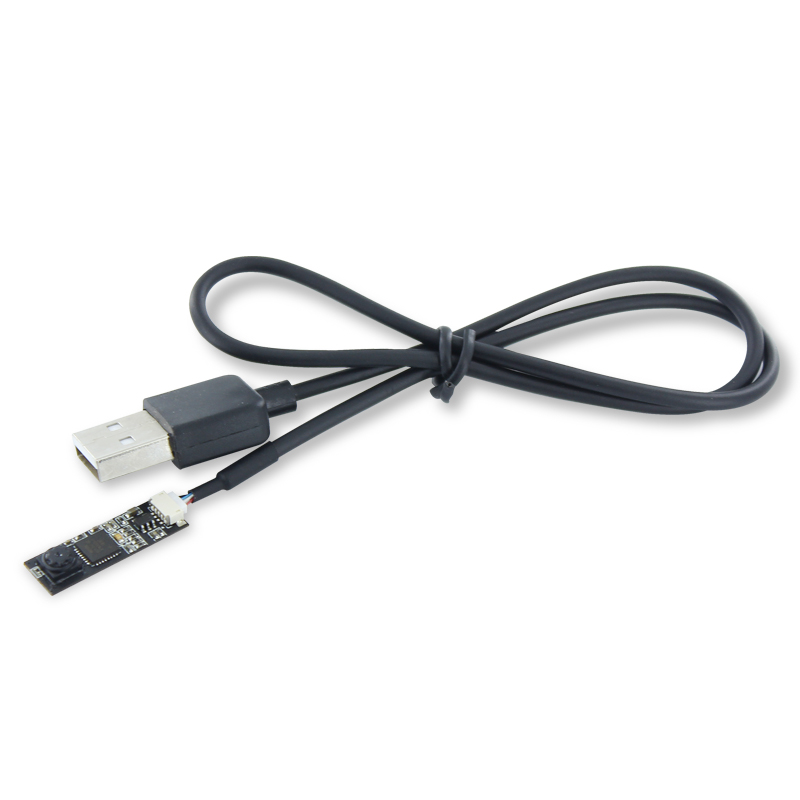

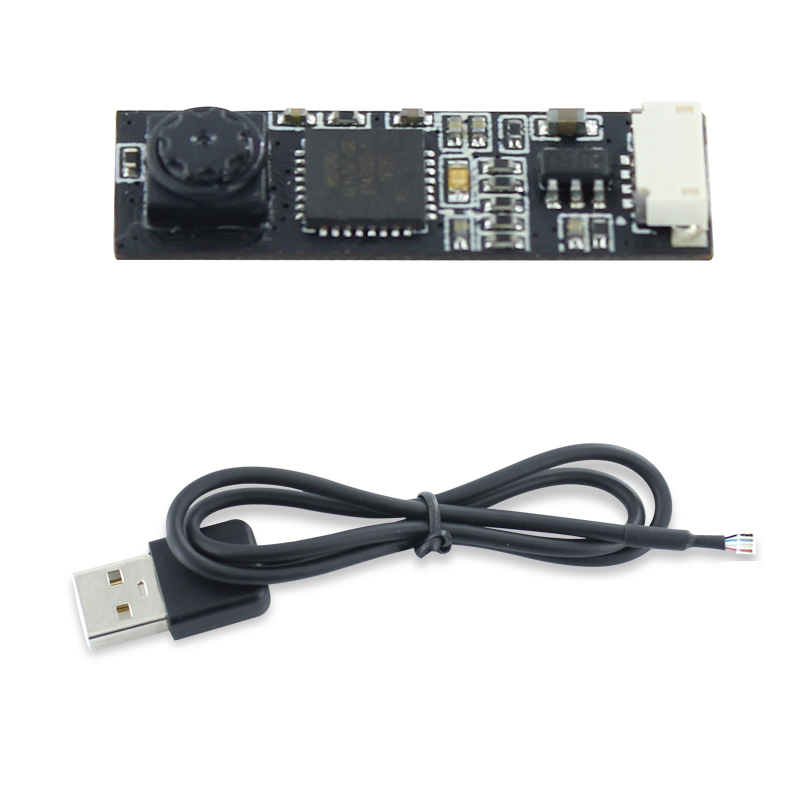

0.3MP All-in-One PC Notebook Camera Module

Product category:

USB Camera Board

SKU:

216588

Price:

$3.60

Description

Product Name	0.3MP Notebook Built-in Camera Module
Module No	BM1939 V11-50
Module Size	25mm × 8mm × 3.5mm±0.2MM
Features	1. Mainly used for brand machine refurbishment machine and modification machine 2. The product is small in size, flexible in structure and cost-effective
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Fixed
Object distance	30CM-infinity
Resolution	400LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	290mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV7675 (1/9" )
Seneor Package	CSP,Bare Die
Maximum resolution	640*480
Sensitivity	1.8V /（lux-sec）
Pixel Size	2.5µm x 2.5µm
Maximum Image Transfer Rate	YUY2 160x120 30FPS YUY2 176x144 30FPS YUY2 320x240 30FPS YUY2 352x288 30FPS YUY2 640x480 30FPS
S/N Ratio	38 db
Max Dynamic Range	71 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2
Microphone	NO
Lens Construction	2P
F/No	2.8
EFL	1.7mm
FOV	50°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
