LF3.56-M12-16MP 1/2.3" 3.56mm folcal length 16MP M12 lens with 650nm IR-CUT filter Φ7.86mm F2.5 | Hsell security camera supplier

LF3.56-M12-16MP 1/2.3" 3.56mm folcal length 16MP M12 lens with 650nm IR-CUT filter Φ7.86mm F2.5

Quantity	Price
1 - 9	$10.23
10 - 99	$9.60
100 - Unlimited	$6.73

SKU:

LF3.56-M12-16MP

Product category:

Resolution:

full product footer

Description

16MP high resolution design, central-edge consistent imaging, suitable for 1/2.3" sensor IMX117

Excellent coating process and multi-coated lenses restore the true colors.

Model:				LF3.56-M12-16MP
Parameter of Lens
Pixel				16MP
Image Format				1/2.3″
Focal Length				3.56mm
Aperture				F2.5
Mount				M12×0.5
Field Angle D×H×V(°)				" °	1/2.3
				D	105
				H	88
				V	69
Optical Distortion					-16.5%

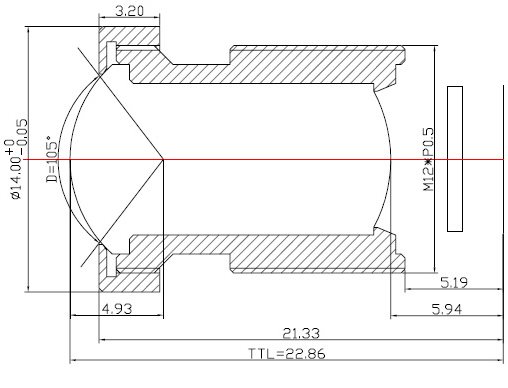

Dimension					Φ14×22.65mm
Flange Back Focal Length					5.19mm
Back Focal Length					5.94mm
CRA					<9.0
Element					7E+IRCUT
Operation		Iris		FIX
		Focus		/
		Zoom		/
Operating temperature				-20°C~+60°C
Size

Size tolerance(mm)		0-10±0.05		10-30±0.10
Angle tolerance				±2°
